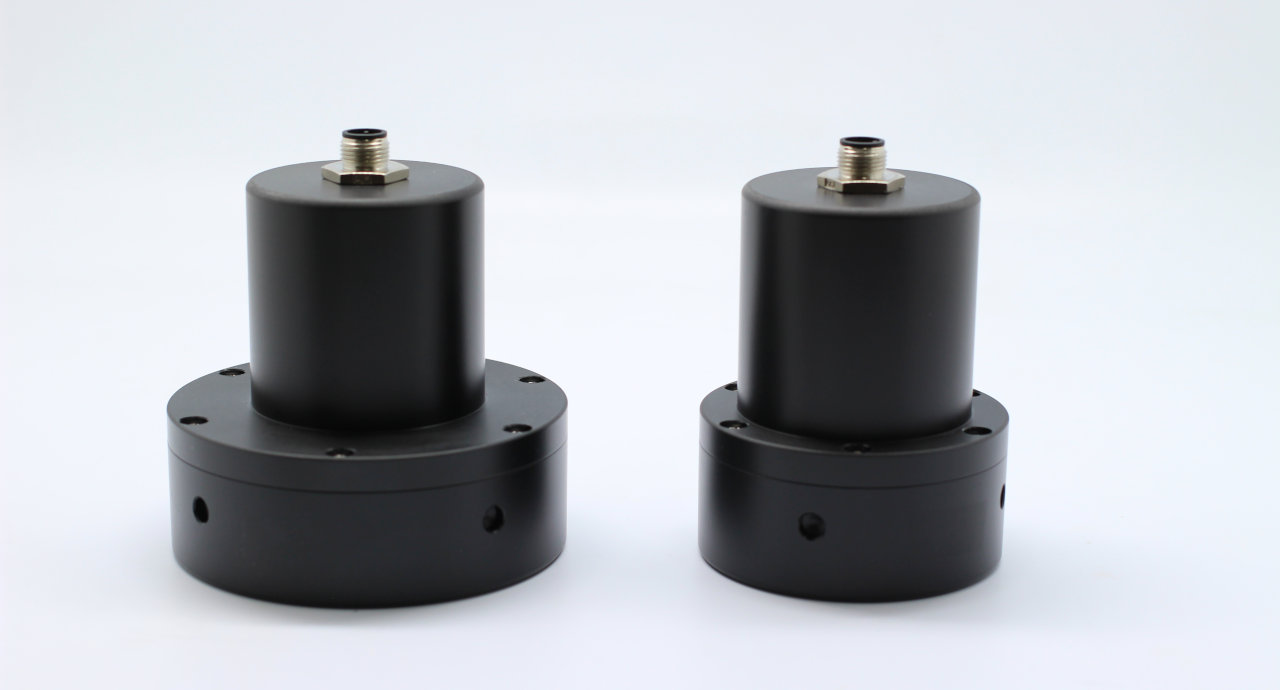

Echologger EU D032 & ECT D032

Ultracompact dual frequency echosounder (30/200kHz, 50/200kHz)

Models
EU D052 (50/200kHz)

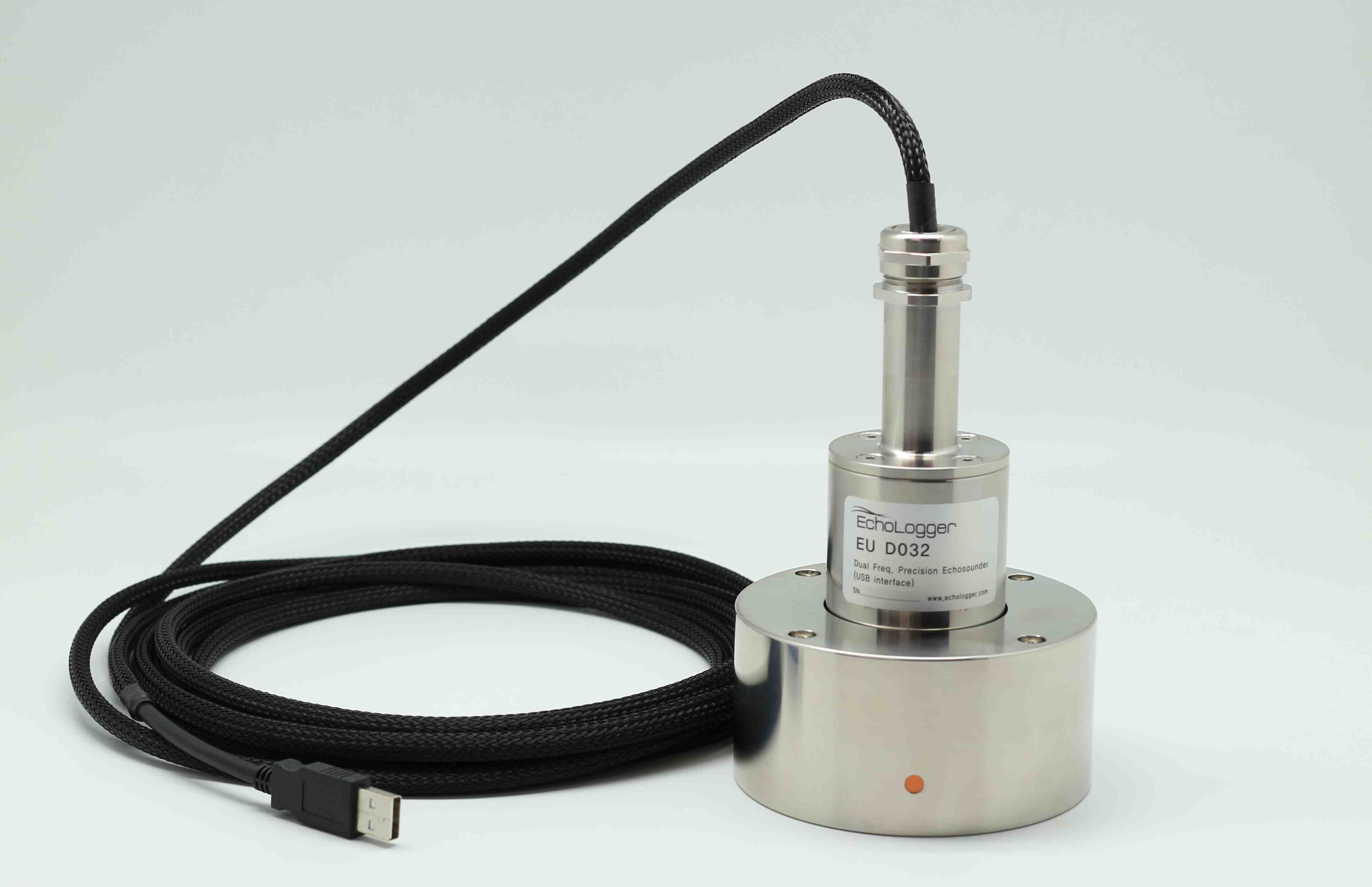

EU D032 (30/200 kHz)

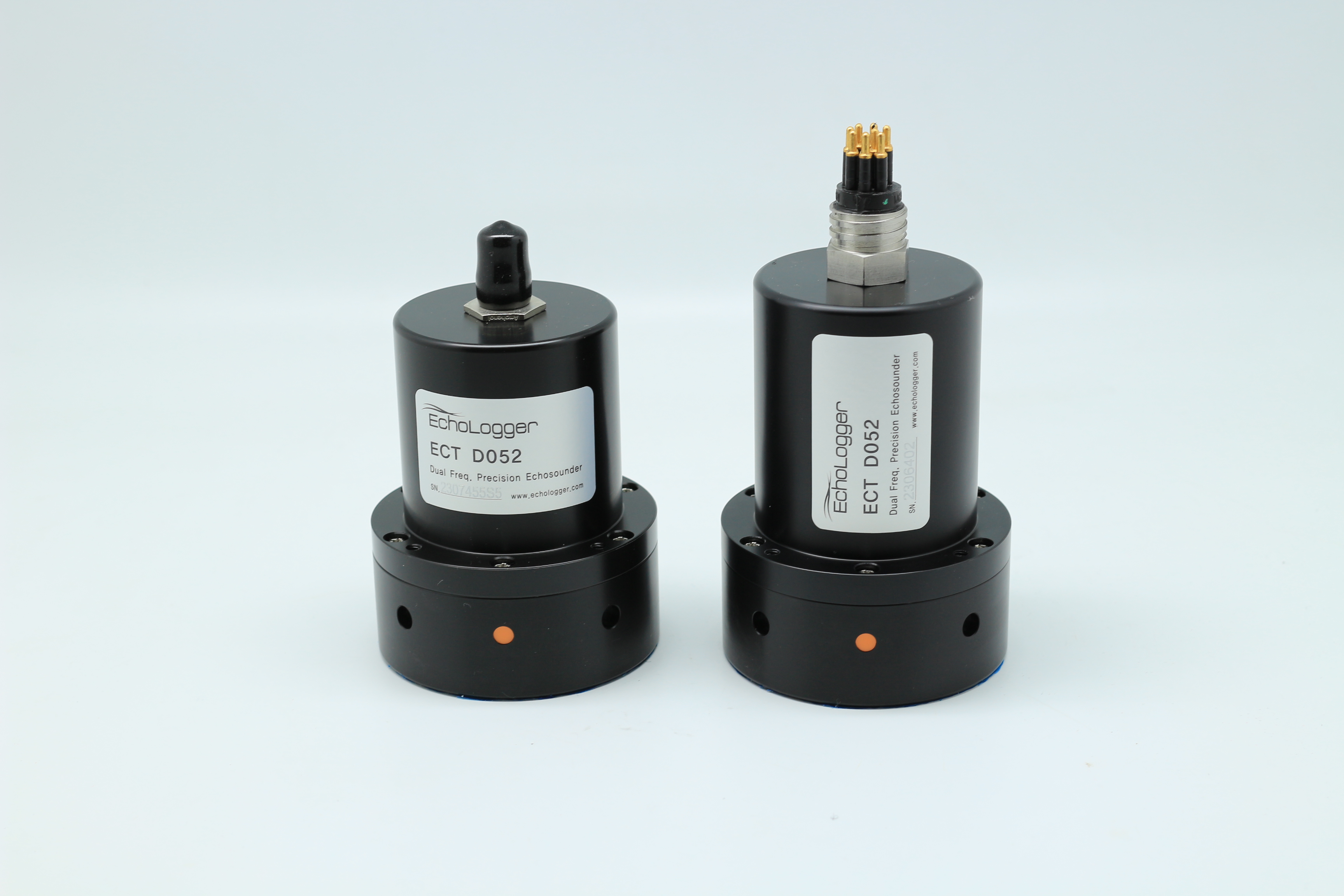

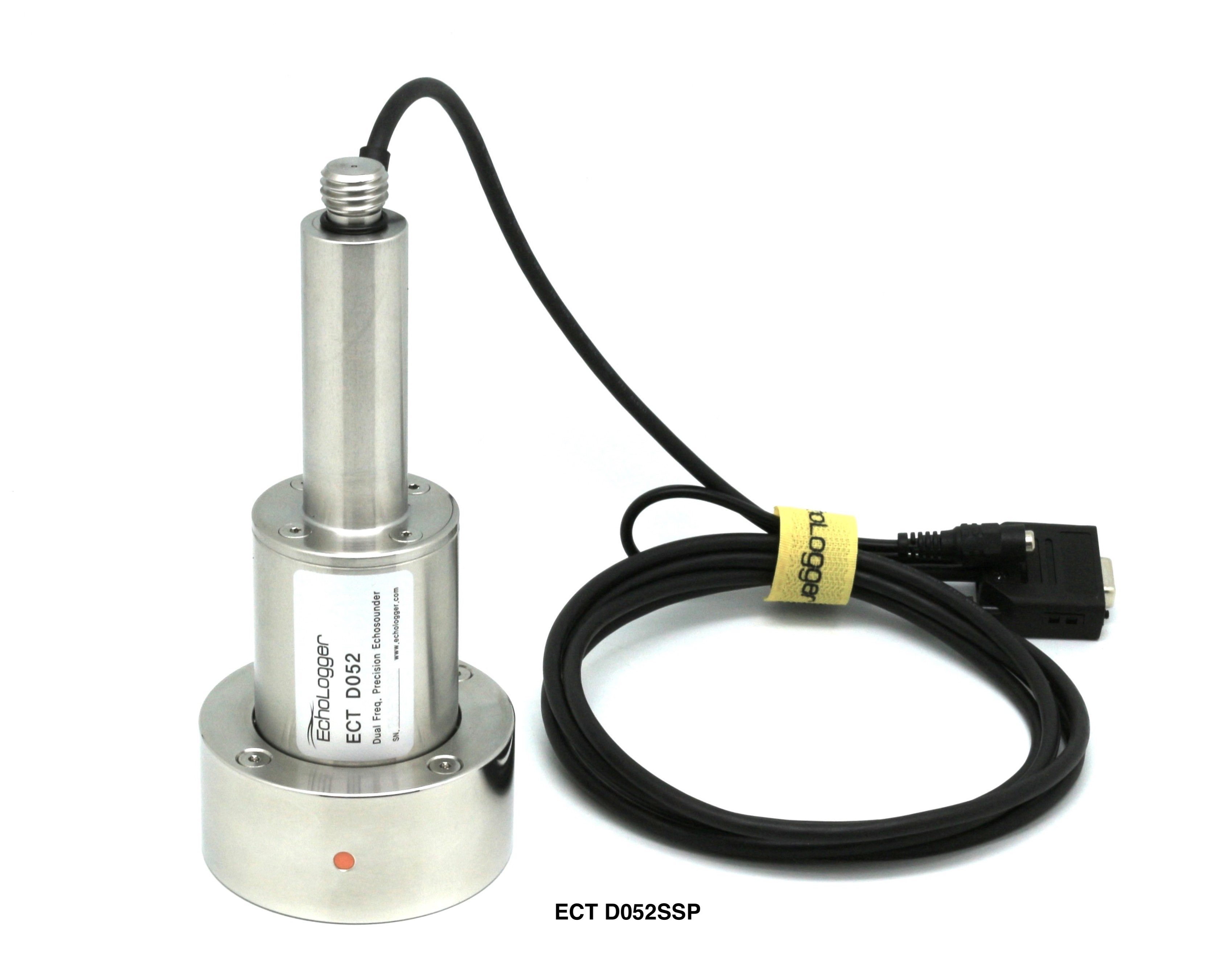

ECT D052S (50/200 kHz)
ECT D032S (30/200 kHz)
ECT D052-100 (50/200 kHz)
ECT D032-100 (30/200 kHz)



We offer open-source APIs for our devices, empowering developers by simplifying integration, accelerating development, improving functionality, and enhancing compatibility. This strategic move not only boosts developer satisfaction and productivity but also strengthens our market position and drives innovation.

Echologger APIs
  • Ultra Compact Dual Freq. Echosounder  EU D052
  • Ultra Compact Dual Freq. Echosounder EU D032
  • Ultra Compact Dual Freq. Echosounder  ECT D052
  • Ultra Compact Dual Freq. Echosounder ECT D032

Echologger proudly introduces the EU D032 / ECT D032 and EU D052 / ECT D052, ultracompact Dual Frequency Echosounders designed to elevate underwater surveys with a unique combination of low frequency (30kHz or 50kHz) and conventional 200kHz capabilities. This innovative fusion of frequencies enhances the reliability of echosounder data, particularly benefiting sediment studies. By employing both low and conventional frequencies, these echosounders provide a comprehensive understanding of underwater environments, extracting valuable information from sub-bottom layers.

The EU D032 / ECT D032 and EU D052 / ECT D052 models offer a flexible range of interface schemes, including USB and serial interfaces (RS232 or RS485). This diversity ensures seamless integration with various systems, allowing users to tailor the echosounders to their specific requirements. The choice of interface schemes underscores Echologger's commitment to providing adaptable solutions that align with the unique needs of customers in diverse underwater survey scenarios.

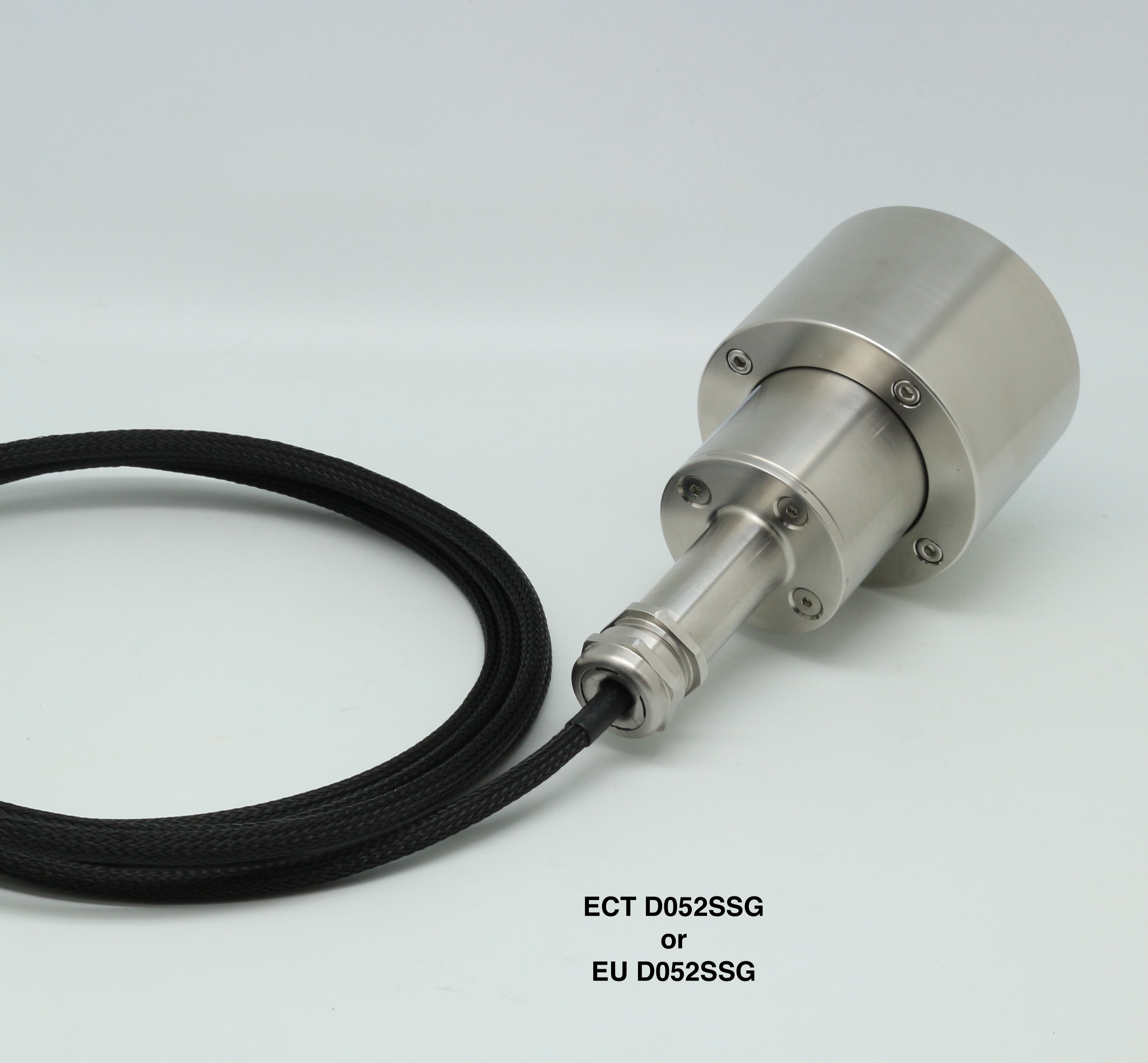

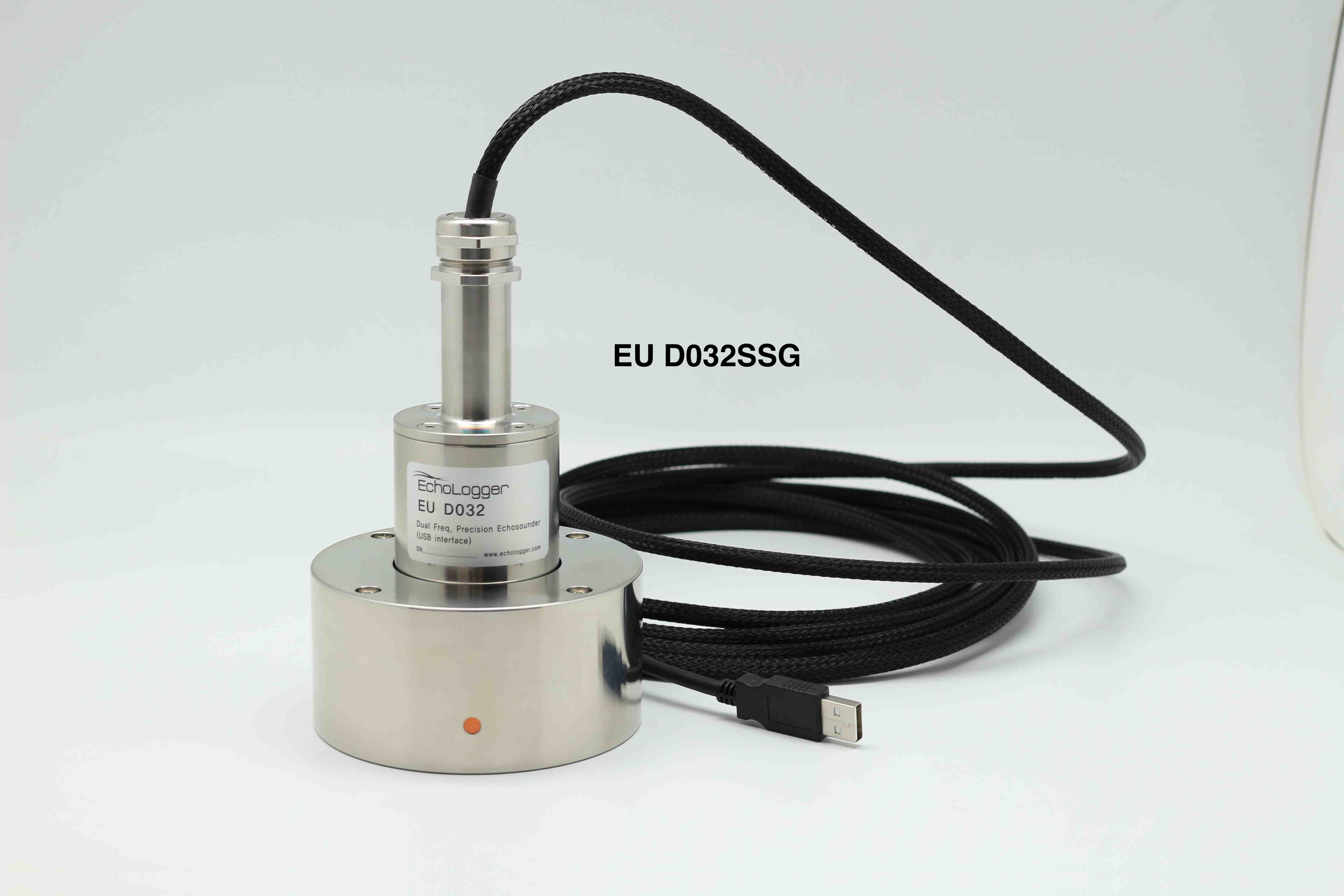

Widely adapted by professional bathymetric survey firms equipped with Unmanned Surface Vehicles (USVs) and drones (UAVs), these ultracompact Dual Frequency Echosounders redefine the possibilities for sediment studies. The incorporation of low frequencies not only enhances reliability but also allows for the extraction of extra information from sub-bottom layers, providing professionals with a more comprehensive dataset for their analyses.

Features

  • 50/200kHz, 30/200kHz
  • Backscatter data
  • Fluid mud layer detection
  • Very light & low power consumption
  • Suitable for bathymetric survey on manned or unmanned boats
  • Ping rate : up to 100Hz
  • Altitude range resolution : 1mm
  • Versatile Interfaces : USB/RS232/RS485
  • Hypack, HydroMagic compatible in echogram mode
Video

Ultracompact Dual Frequency Echosounder (EU D052, EU D032, ECT D052 & ECT D032)

Acoustic Frequency 50/200 KHz (Exx D052), 30/200kHz (Exx D032)
Beam width 27° / 7° (50kHz/200kHz) , 26° / 5° (30kHz/200kHz), Conical (-3dB) (echo mode)
Transmit Pulse Width 100µsec ~ 1000µsec
Transmit Power Max. 30 W, adjustable
TVG Control Up to 60 dB
Gain Control -30 dB to +30 dB
Input Signal Attenuator (-20dB) Activation time 0~300,000 µSec
Ranges 1.0 m ~ 200 m (50 kHz, 30kHz), 0.5 m ~ 200 m (200 kHz)
Repetition (Ping) Rate 100 Hz max
Sampling Rate Max 100 kHz; adjustable, or auto mode (default)
Water Column Resolution Appx. 7.5 mm @ 100 kHz sampling
Altimeter Range Resolution 1.0 mm
Temperature sensor Resolution 0.1°C
Tilt sensor integrated Dual-axis (Roll & Pitch) ±90° , Inclination data resolution 0.1°
Digital Output Interface EU D052 / EU D032: USB 2.0, ECT D052/ ECT D032: adjustable (RS-232 or RS-485)
Communication Speed EU D052/ EU D032: 4,800 ~ 921,600, 3M baud (115,200 baud default), ECT D052/ ECT D032: 4,800 ~ 921,600 baud (115,200 baud default)
Data Output Format Profile 10bit/12bit resolution ASCII Text , Profile 12bit resolution Binary , Profile 8bit resolution Binary (12bit compressed to 8bit) , Altitude NMEA0183 / Altitude Simple
Configuration and Data reading Echologger Echosounder Control Program (Dual) or any Terminal program
Multi node Inter-networking (RS485 only) Up to 32 units
Connector EU D052/ EU D032: LTW 12-05PMMS-SH8003, ECT D052S/ ECT D032S: LTW M12A-08PMMS-SH8002, ECT D052-100/ ECT D032-100: SEACON MCBH8SS
Power supply EU D052/ EU D032: USB Powered, 2W max, ECT D052/ ECT D032: 10 ~ 75 VDC, 2W max, Internally isolated
Operation Temperature -10°C +50°C
Operating Depth EU D052/ EU D032 / ECT D052S/ ECT D032S: 1m (for surface vehicle), ECT D052-100, ECT D032-100: 100m
Housing Acetal
Dimensions Ø74 mm x L90 mm (without connector)
Weight 460g (without cable)
Other features Use both frequencies simultaneously or separately, Compatible with major hydro-graphic softwares (Hypack, HydroMagic, HydroPro, Echoview etc.) GPS integrated data

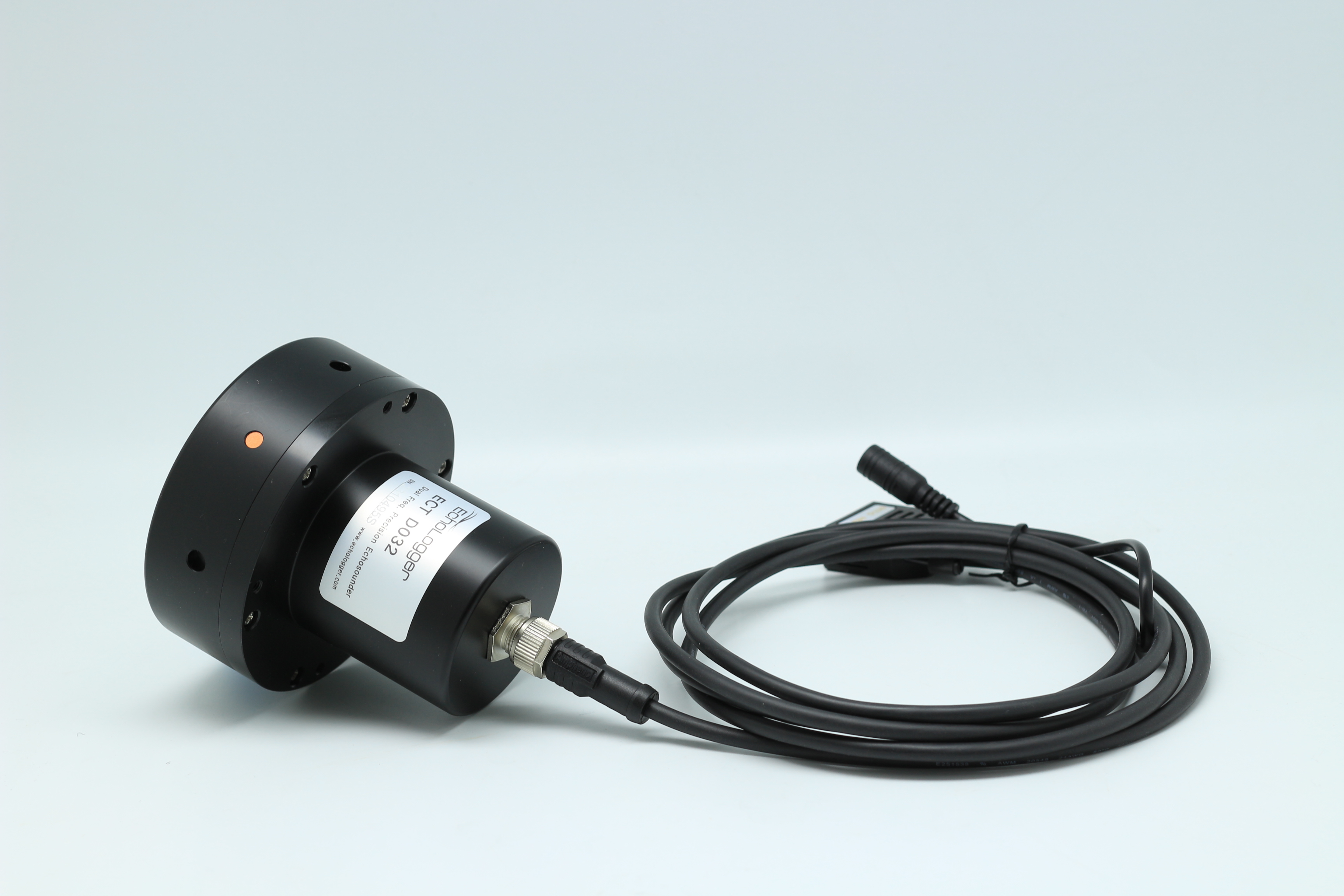

Echologger echosounder ECT D032
