ECHOLOGGER ECT400 / ECT200 & ECS400 / ECS200

Most compact professional echosounder in the sonar market
Available frequency :450kHz & 200kHz

Models

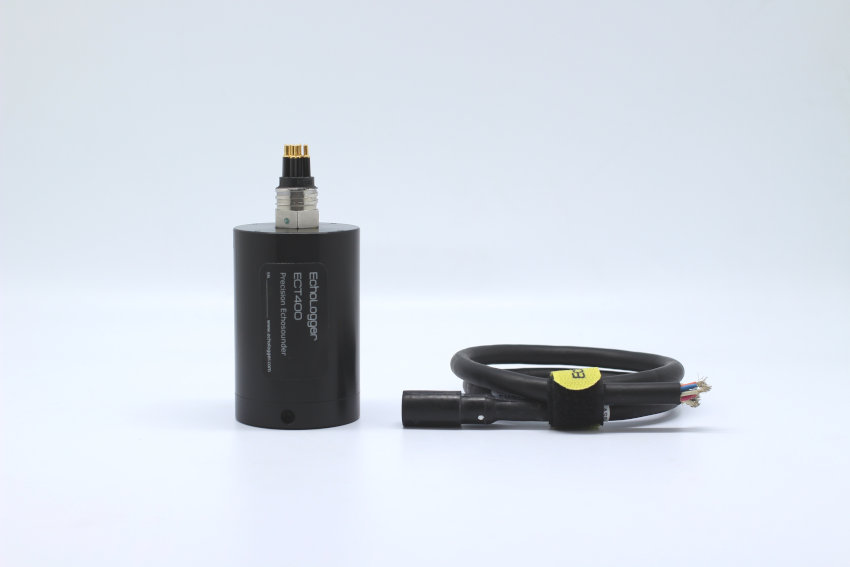

ECT400

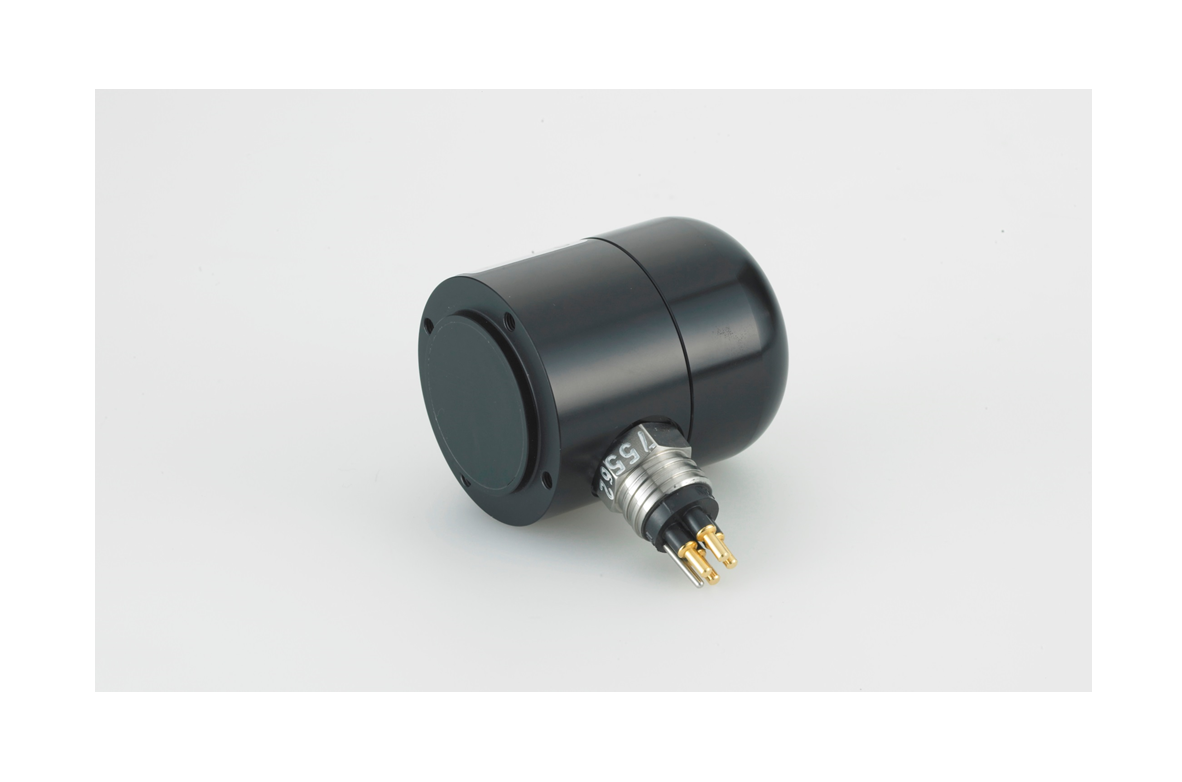

ECS400

ECT200

ECS200

Contact

ECT400 / ECT200 and ECS400 / ECS200 are some of the most compact and lightest precision echosounders in the sonar market that can measure full backscatter data as well as accurate altitude data.

Features

Real-time backscatter data collection along full water columns
Ultra compact
Ideal for navigation of ROV/AUVs and bathymetry
Serial interface (RS232, 485, 422)
Compatible with Hypack, HydroMagic, ReefMaster and HydroPro(Trimble)
Seacon underwater wet connector

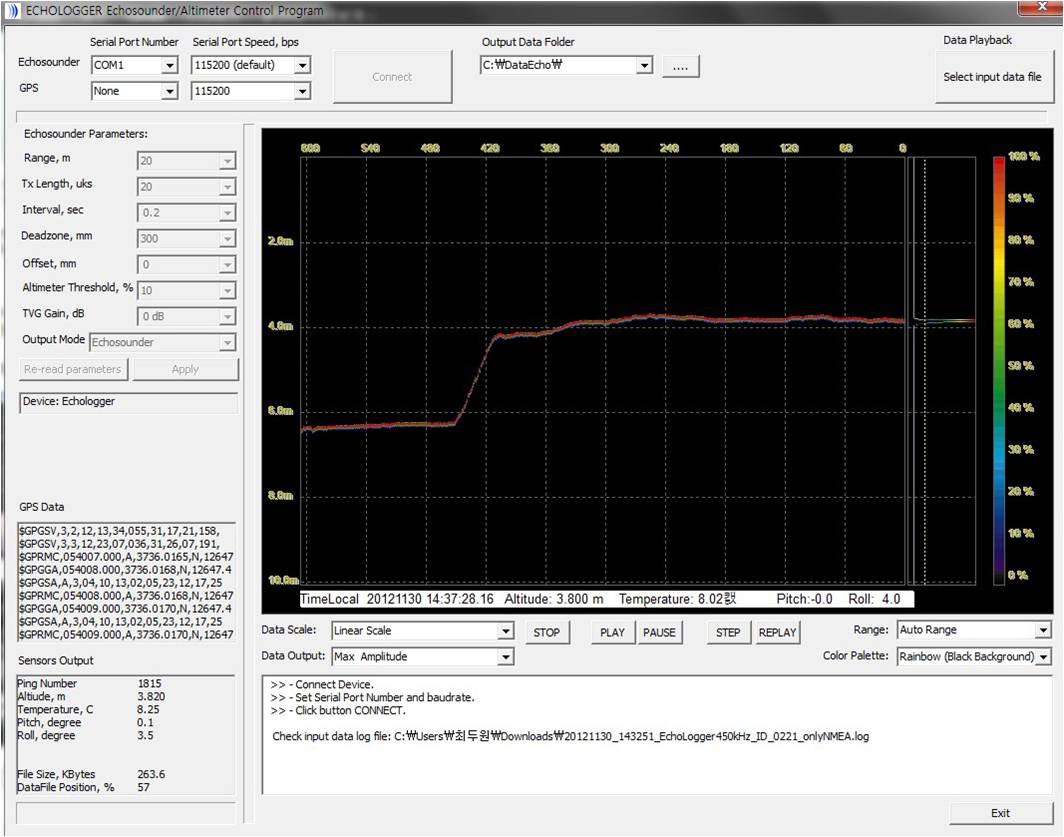

User friendly GUI software provided for instant image update
Tilt sensor integrated (option )
Depth rate up to 6,000m

Applications

Ardupilot (Pixhawk) Compatible

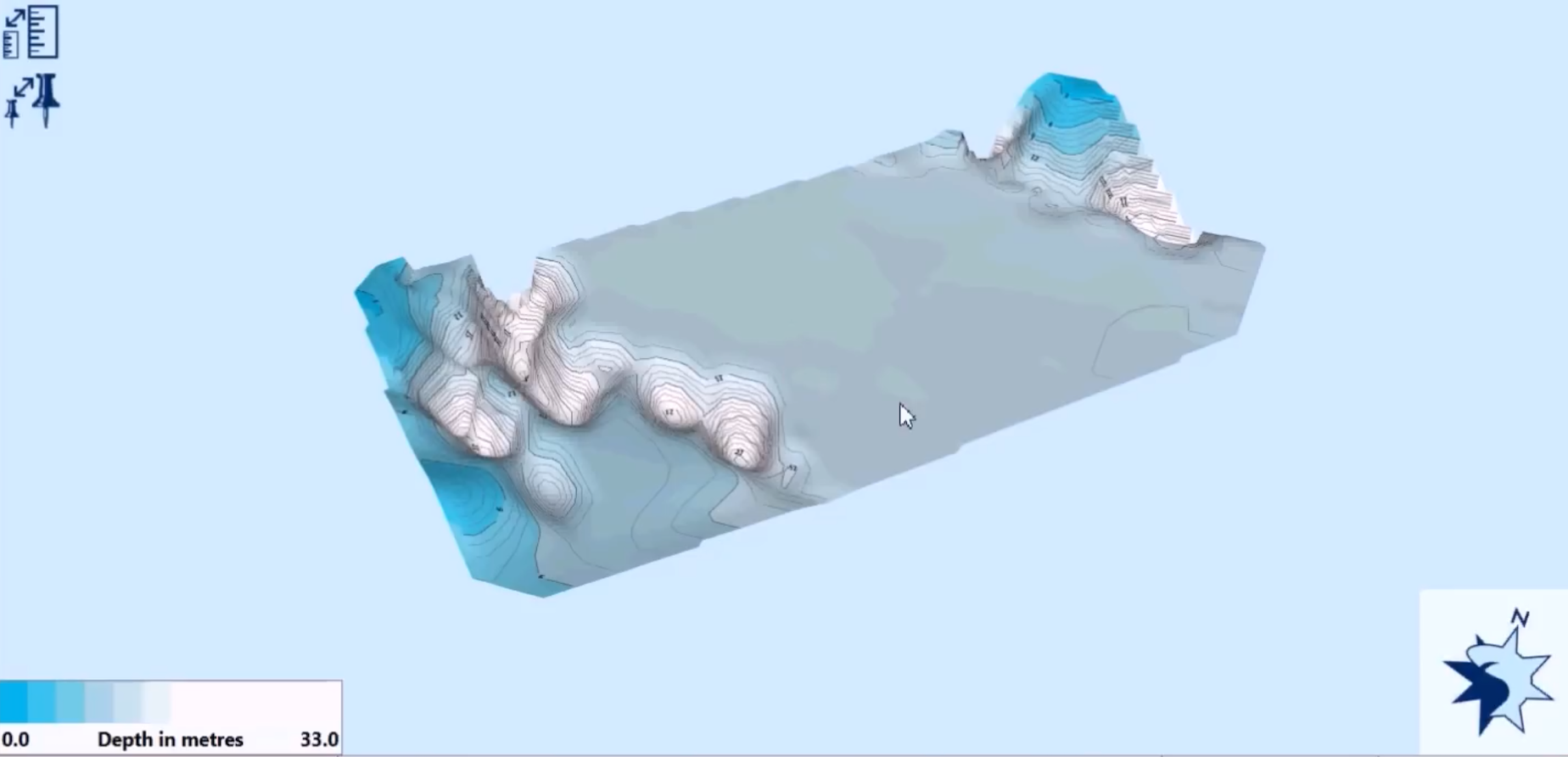

Bathymetry

Depth Measurement

Fishery / Zoo Plankton Studies

Sediment Move Monitoring

Unmanned Surface Vehicles

Wave Measurement

Video

Specifications

Acoustic Frequency	450kHz (ECT400, ECS400), 200kHz (ECT200, ECS200)
Beam width	5° (450kHz) / 10° (200kHz) Conical (-3dB)
Transmit Pulse Width	10μsec ~ 200μsec (10μsec step)
Ranges	0.15 m ~ 100 m
Housing Material	Acetal (ECT400, ECT200), Aluminium (ECS400, ECS200)
Connector	SEACON
Operating Depth	100m, 1,000m and 6,000m
Repetition (Ping) Rate	10 Hz max
Sampling Rate	100 kHz
Water Column Resolution	appx. 7.5 mm
Altimeter Range Resolution	1.0 mm
Temperature Resolution	0.1°C
Tilt sensor integrated (optional)	Dual-axis, horizontal operation : ±90°
Tilt sensor integrated (optional)	Inclination data accuracy : 0.1
Digital Output Interface	RS-232, RS-485, RS-422
Communication Speed	4,800 ~ 921,600 baud (115,200 baud default)
Data Output Format	ASCII TXT, NMEA0183, or user defined (optional)
Configuration and Data reading	Echologger Control Program or any terminal program
Operation Temperature	-10°C +50°C
Power supply	8 ~ 75 VDC, 2W max

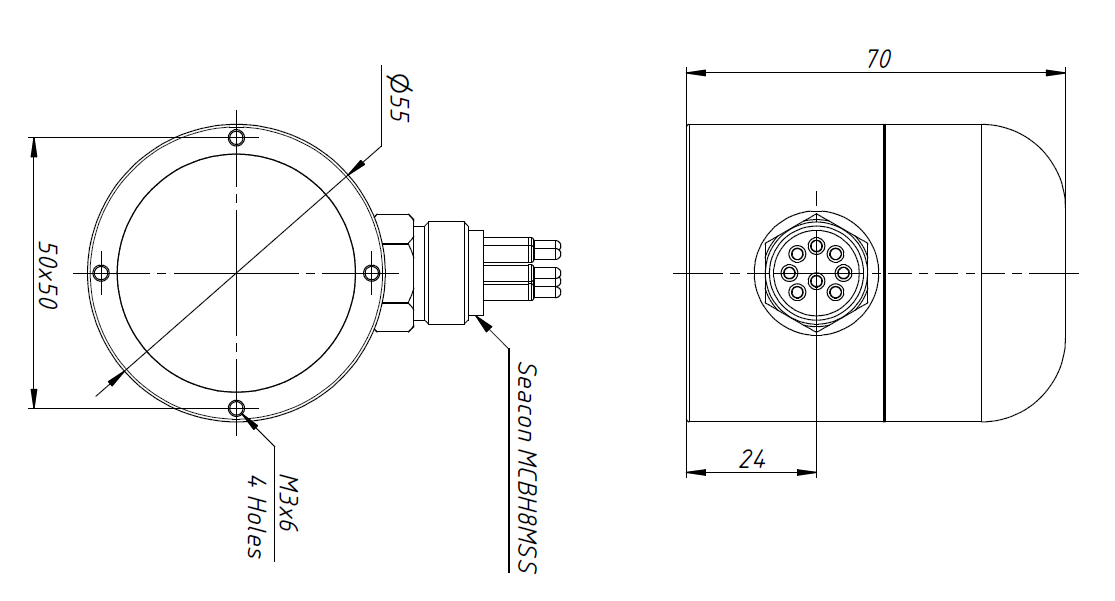

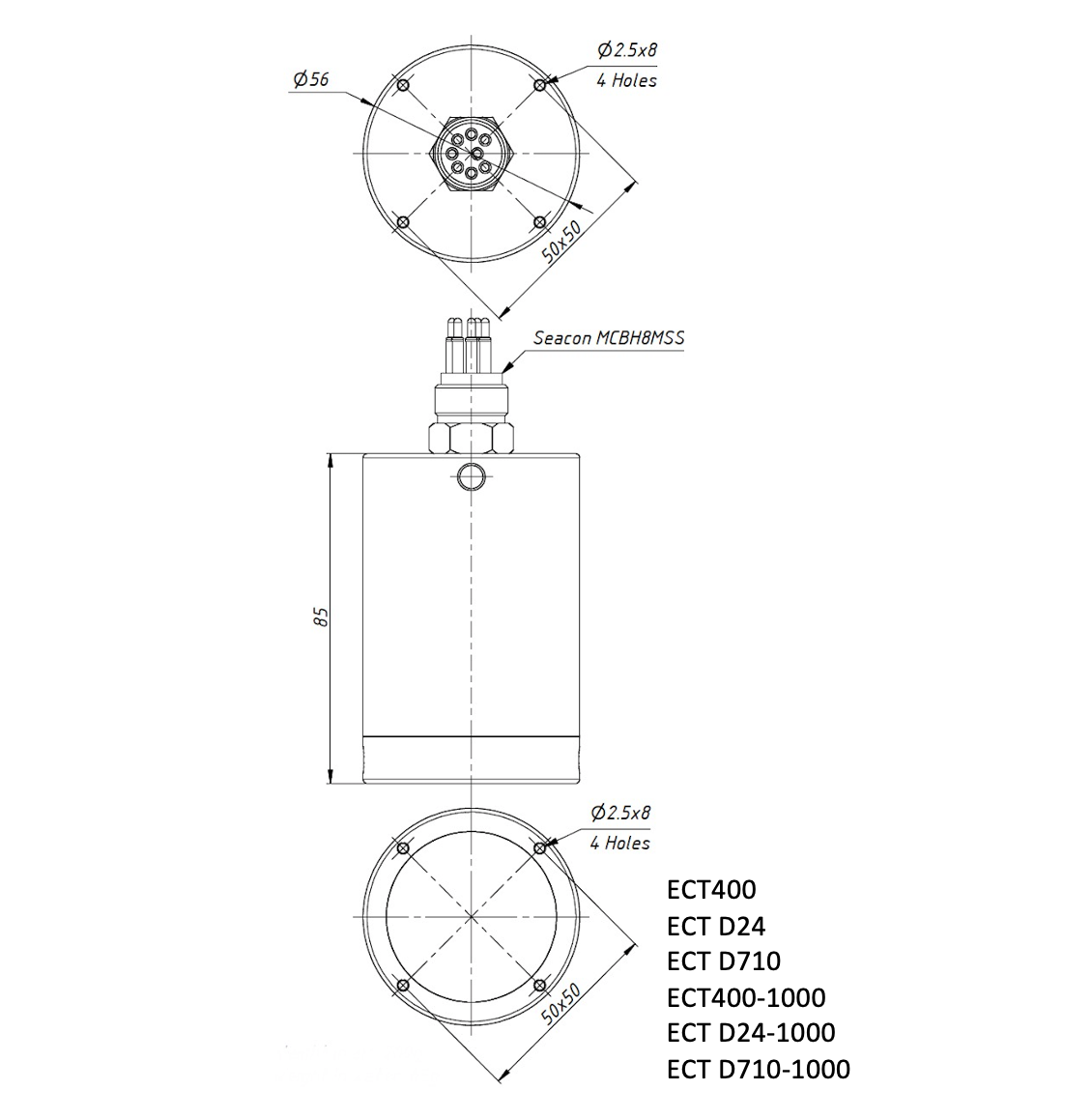

Dimensions	D56 x L85 (ECT400, ECT200), D55 x L70 (ECS400, ECS200)
Weight	270g (ECT400, ECS200), 310g (ECS400, ECS200)
Other features	Hypack, HydroMagic, ReefMaster compatible (NMEA, Echogram)
